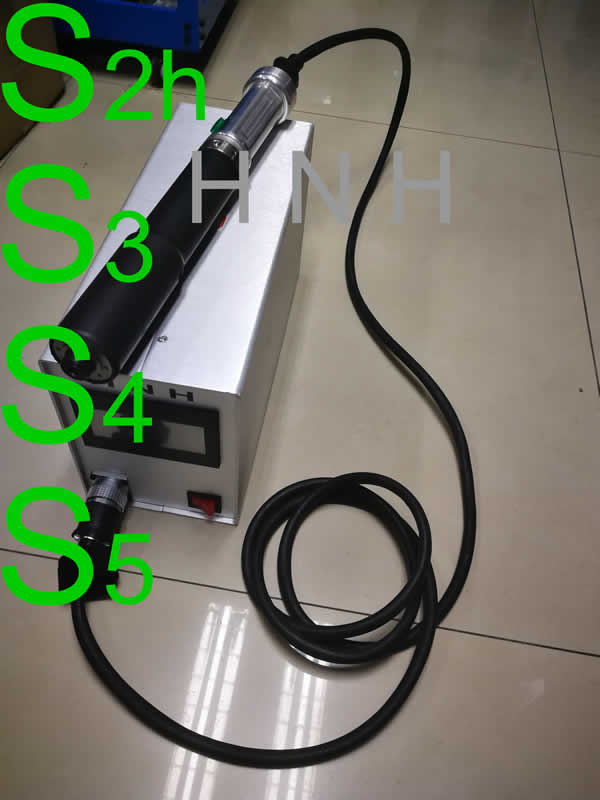

●Series:SHigh-speed precision digital control, real-time display and storage of tightening process data, inspection report whether each tightening is qualified How to control the tightening quality?
|
|
The tightening process is finely controlled, and the whole process is automatically detected and recorded. Key features:
◆ High-speed digital control of the tightening process, high precision, long service life, almost maintenance-free; ◆ High-speed real-time detection and high-precision control of tightening torque value; Torque can be controlled in both forward and reverse directions; ◆ It can control the angle, detect the rotation speed in real time, control the soft start, control the turning angle, and filter out errors such as stripped gears and false locks. ◆ The controller interface displays the main data of the tightening process in real time: actual torque value, angle value, process time, qualification, etc.; Displayed and set by the touch screen, the touch screen can be placed externally (specify the requirements when ordering), extended by cable, and placed near the operator; ◆ With RS232C communication port and Ethernet port RJ45 (optional), real-time output of tightening process data, collected and stored by tightening data acquisition software, data storage is almost unlimited; ◆ Rich input and output control signals: start, stop, forward and reverse, tightening completed, qualification status, error alarm, program selection, multi-axis synchronous control, etc.; the lever controls start and stop; ◆ The transmission parts are made of high-quality alloy steel materials, and the tools are compact, durable and reliable. ◆ Effective measures have been taken in terms of communication mode, data transmission, shielding, and wiring to ensure that the system works at high speed and reliably. ◆ The system is equipped with appropriate electrical protection and error alarm mechanisms; ◆ The connection between the tool body and the controller is only one cable, which is very simple and convenient to use; ◆ Each set of tools includes: tool body, controller, supporting cable, connected to the power supply, and can be used directly after setting the tightening parameters; ◆ Not only is it powerful, but also simple and compact, lightweight, thermal insulation, and man-machine optimized design shell; ◆ Compared with pneumatic products, the control is more flexible and accurate, the energy utilization rate is higher, and the environment is more environmentally friendly. Applications: Handheld use, or with auxiliary operation rocker arm, manipulator, robot use, precise control of tightening torque, tightening and assembly of all kinds of screws, nuts, bolts, suitable for most industrial assembly: automobile and parts assembly, electronic product assembly, compressor, engine, home appliances, instrumentation, various parts, transportation and parts, aviation, valves, etc.         Tips: ◆ Selection: The main selection parameters are tightening torque, precision, speed, and specific application requirements; ◆ Tightening torque value standard DIN (PDF format, for reference only). |
|||||||||
    |

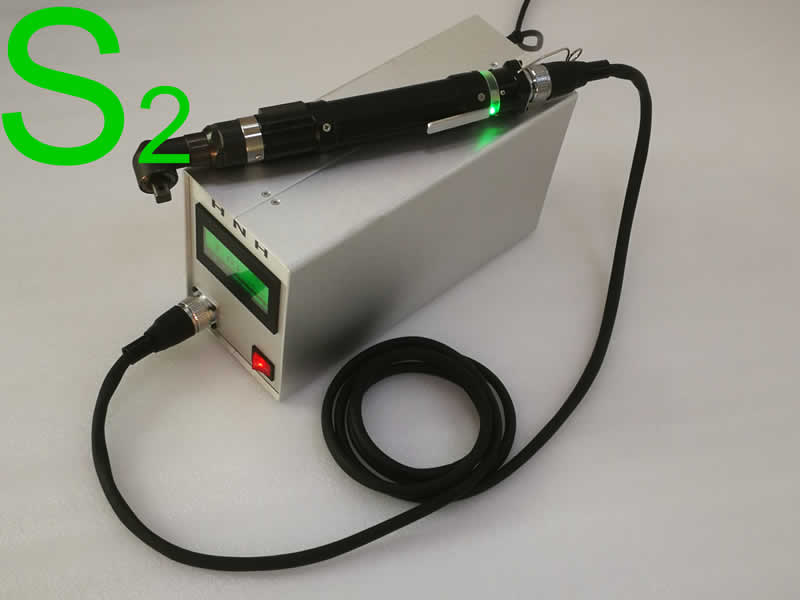

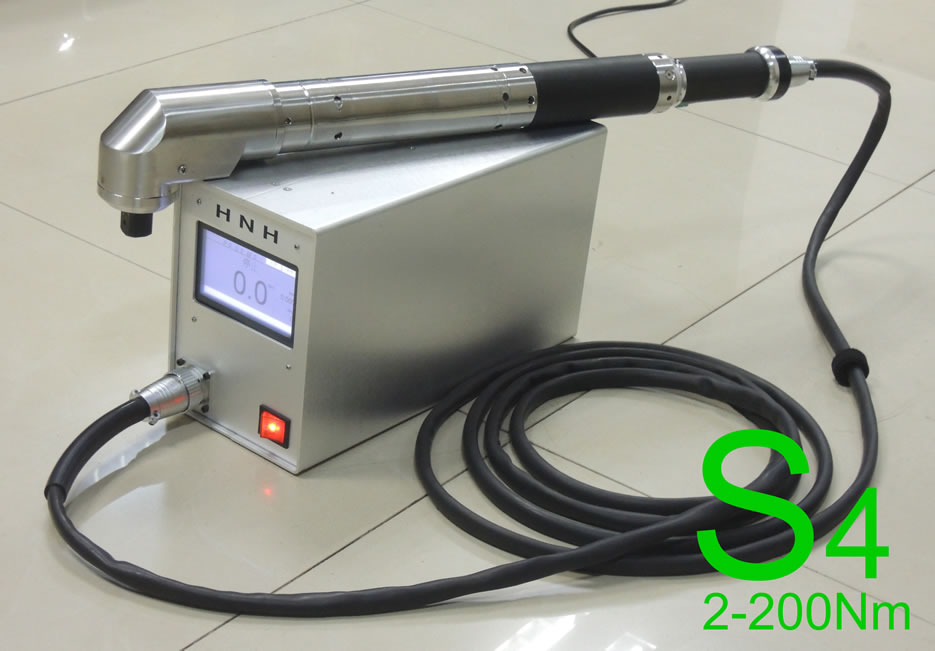

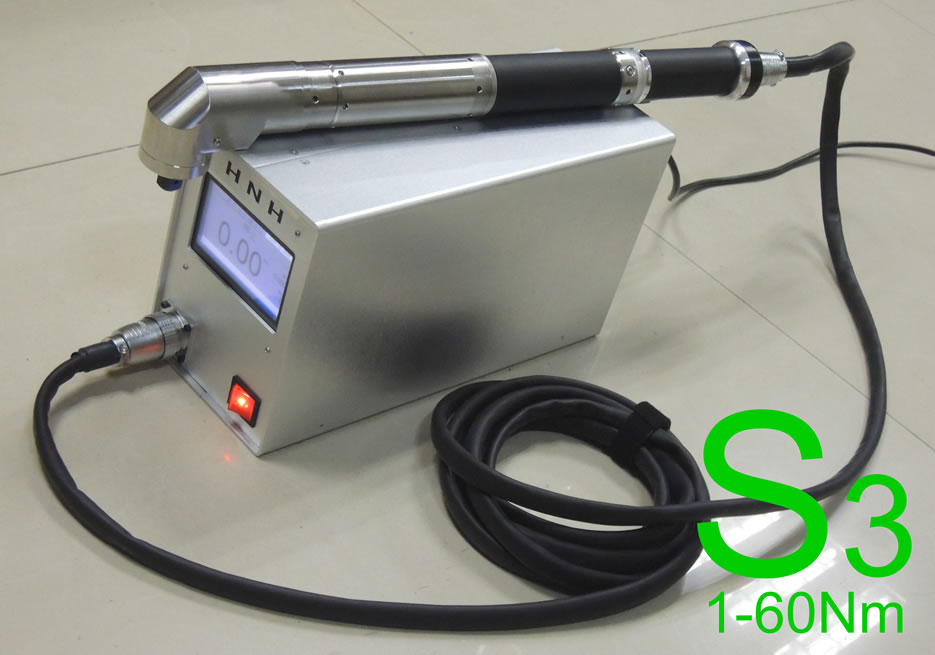

- The table above represents the straight handle tool, and the addition of ".1" after the number indicates the corresponding angle tool. - Equipped with standard 3-meter cable, with quick-change connectors at both ends, optional 5 meters or 10 meters. |
- The table above represents the straight handle tool, and the addition of ".1" after the number indicates the corresponding angle tool. - Equipped with standard 3-meter cable, with quick-change connectors at both ends, optional 5 meters or 10 meters. |
- The table above represents the straight handle tool, and the addition of ".1" after the number indicates the corresponding angle tool. - Equipped with standard 5-meter cable, with quick-change connectors at both ends, optional 3 meters or 10 meters. |
- The table above represents the straight handle tool, and the addition of ".1" after the number indicates the corresponding angle tool. - Equipped with standard 5-meter cable, with quick-change connectors at both ends, optional 3 meters or 10 meters. |
- The table above represents the straight handle tool, and the addition of ".1" after the number indicates the corresponding angle tool. - Equipped with standard 5-meter cable, with quick-change connectors at both ends, optional 3 meters or 10 meters. |
Note: - Suitable for direct use or simple further development integration. - The IO port adopts industrial-grade optoelectronic isolation for extremely high reliability and anti-interference ability. - The integral metal shell is enclosed for further resistance to interference. - All components are industrial-grade. - IO port functions: start, stop, job completion, qualification, error alarm, program selection, multi-axis synchronous control, output control, input control, etc. - The serial port communicates with the software SNIP (sold separately) to store a large amount of operation data. - The serial port can communicate to realize all the functions of the IO port. - The interface color is strongly displayed to display the OK/NOK status of the report: OK-green, NOK-red. - The interface displays the torque value, angle value, process time, qualification and other data of the tightening process in real time, and the torque bar displays the degree of tightening in real time. - It has a high ability to expand functions, if you need more functions, please consult.
|

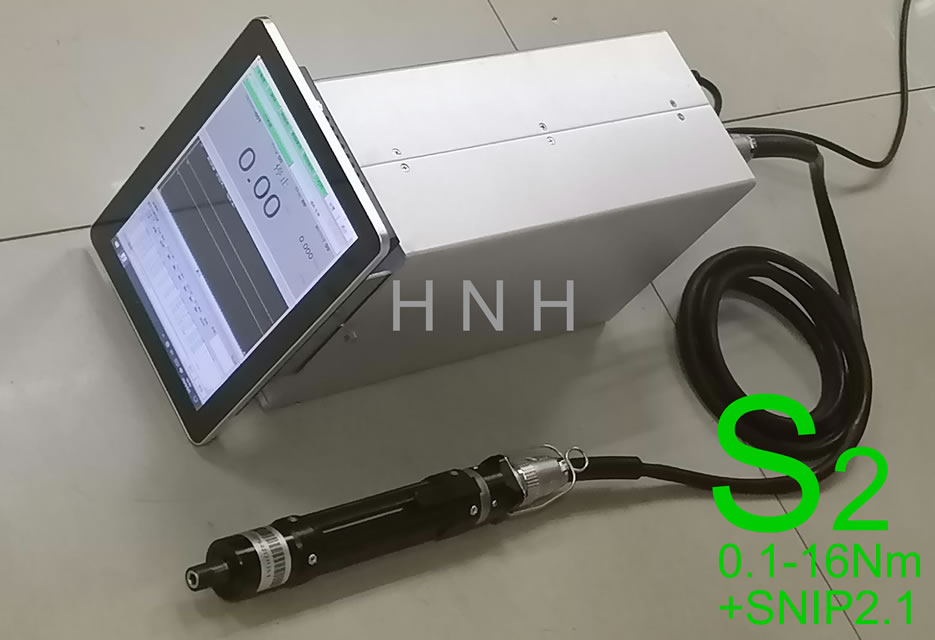

  SNIP: Data acquisition and traceability software stores a large amount of job data in Excel readable format and database format and sends it to the remote host.
Multi-function auxiliary operation arm
|
|
How to control the tightening mass with the SN tools?
|
